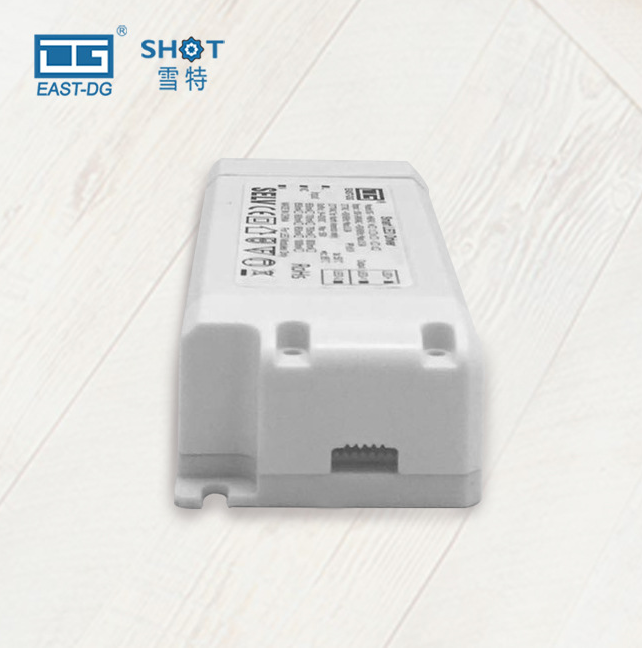

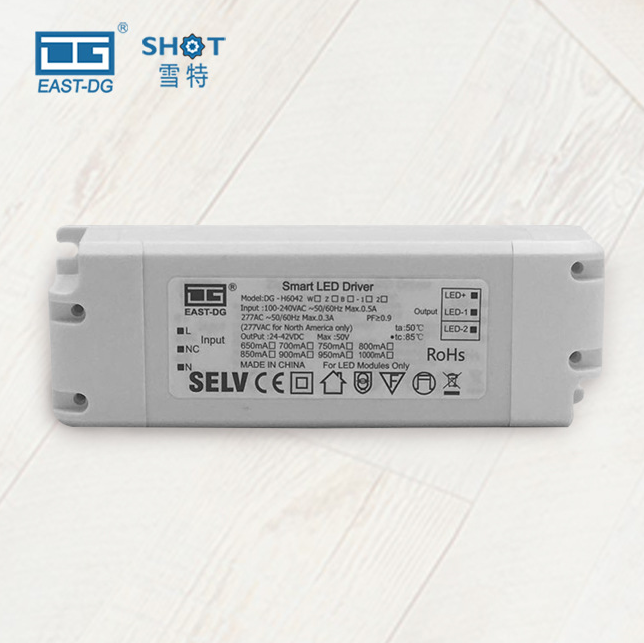

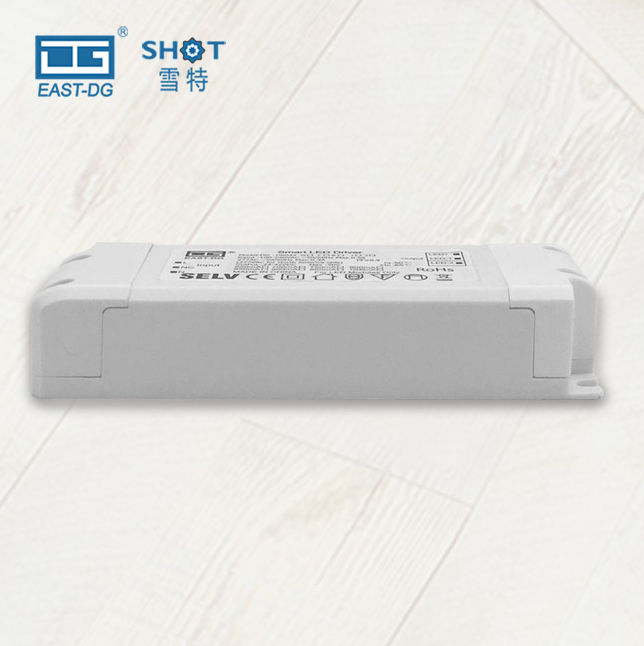

35W 40W single dimming intelligent power 1000mA / Bluetooth mesh intelligent controller mobile app



1、 Product parameters
model
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.8A
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.75A
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.7A
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.65A


output
power
33.6W
31.5W
29.4W
27.3W
output voltage
24-42V
24-42V
24-42V
24-42V
Current accuracy
±5%
±5%
±5%
±5%
Output current
800mA
750mA
700mA
600mA
Ripple voltage
＜1V
＜1V
＜1V
＜1V
temperature drift
±8%
Start time
100Vac＜1S 230Vac＜0.5S 277Vac＜0.5S
Output linear adjustment rate
±5%
input
Input linear adjustment rate
±5%
Voltage range
100 ~ 277VAC (limit voltage: 90 ~ 305vac) & nbsp;
frequency range
47～63Hz
power factor
≥0.9
≥0.9
≥0.9
≥0.9
efficiency
≥84%
≥84%
≥84%
≥84%
Surge current
<60A/ 350uS@230Vac
Input current
<0.5A
Harmonics (typical)
≤20%

protect
Open circuit protection
Open circuit voltage < 58vdc
Short circuit protection
Burping mode, which can be automatically restored after the abnormal condition is removed


environment
working temperature
-30～+50℃
Working humidity
20-90% RH (no condensation)
Storage temperature / humidity
-40 ℃ - 80 ℃ (class I environment for 6 months); 10-90% RH (no condensation)
Atmospheric pressure
86-106KPa
Safety regulation and electromagnetic compatibility
Safety specification
EN61347-2-13:2006 /EN61347-1:2008
Withstand voltage
I/P-O/P:3.75KVac,<5mA,60S；
Insulation impedance
I/P-O/P:500Vac,>100M?0?9
electromagnetic interference
According to en55015 and en61000-3-2.
Surge level
Comply with iec61000-4-5 (L-N: 1KV)
Electromagnetic immunity
According to en61000-4-2,3,4,5,6,8,11; EN61547
other
size
(L*W*H) =155mm *53mm *30mm
IP level
IP20
weight
183g
packing
carton
Warranty Statement
3 years (TC & le; 75 ℃)
Test instructions
1. Unless otherwise specified, the above power factor, harmonic and efficiency parameters are measured under the conditions of ambient temperature 25 ℃, humidity 50%, input voltage 230VAC and 90% load.
Supplementary notes
1. Customers are advised to install overvoltage and undervoltage protection and surge protection devices in the lamp power supply circuit to ensure power safety
2. PC cover, shell, plug and other accessories for power supply in Luminaire must meet ul94-v0 and above fire rating
3. As a part of the whole lamp, the power supply is used in combination with the terminal equipment. Because the EMC performance is affected by the LED lamp and wiring, the terminal equipment manufacturer needs to re confirm the EMC of the whole device.

model
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.6A


output
power
25.2W
output voltage
24-42V
Current accuracy
±5%
Output current
600mA
Ripple voltage
＜1V
temperature drift
±8%
Start time
100Vac＜1S 230Vac＜0.5S 277Vac＜0.5S
Output linear adjustment rate
±5%
input
Input linear adjustment rate
±5%
Voltage range
100 ~ 277VAC (limit voltage: 90 ~ 305vac)
frequency range
47～63Hz
power factor
≥0.9
efficiency
≥84%
Surge current
<60A/ 350uS@230Vac
Input current
<0.5A
Harmonics (typical)
≤20%

protect
Open circuit protection
Open circuit voltage < 58vdc
Short circuit protection
hiccup mode After the exception condition is removed, it can be automatically restored


environment
working temperature
-30～+50℃
Working humidity
20-90% RH (no condensation)
Storage temperature / humidity
-40 ℃ - 80 ℃ (class I environment for 6 months); 10-90% RH (no condensation)
Atmospheric pressure
86-106KPa
Safety regulation and electromagnetic compatibility
Safety specification
EN61347-2-13:2006 /EN61347-1:2008
Withstand voltage
I/P-O/P:3.75KVac,<5mA,60S；
Insulation impedance
I/P-O/P:500Vac,>100M?0?9
electromagnetic interference
According to en55015 and en61000-3-2.
Surge level
Comply with iec61000-4-5 (L-N: 1KV)
Electromagnetic immunity
According to en61000-4-2,3,4,5,6,8,11; EN61547
other
size
(L*W*H) =155mm *53mm *30mm
IP level
IP20
weight
183g
packing
carton
Warranty Statement
3 years (TC & le; 75 ℃)
Test instructions
1. Unless otherwise specified, the above power factor, harmonic and efficiency parameters are measured under the conditions of ambient temperature 25 ℃, humidity 50%, input voltage 230VAC and 90% load.
Supplementary notes
1. Customers are advised to install overvoltage and undervoltage protection and surge protection devices in the lamp power supply circuit to ensure power safety
2. PC cover, shell, plug and other accessories for power supply in Luminaire must meet ul94-v0 and above fire rating
3. As a part of the whole lamp, the power supply is used in combination with the terminal equipment. Because the EMC performance is affected by the LED lamp and wiring, the terminal equipment manufacturer needs to re confirm the EMC of the whole device.

model
DG-H6042- (Z/W/B/2.4G)-（1/2)-0.6A


output
power
25.2W

output voltage
24-42V

Current accuracy
±5%

Output current
600mA

Ripple voltage
＜1V

temperature drift
±8%

Start time
100Vac＜1S 230Vac＜0.5S 277Vac＜0.5S

Output linear adjustment rate
±5%
input
Input linear adjustment rate
±5%

Voltage range
100 ~ 277VAC (limit voltage: 90 ~ 305vac)

frequency range
47～63Hz

power factor
≥0.9

efficiency
≥84%

Surge current
<60A/ 350uS@230Vac

Input current
<0.5A

Harmonics (typical)
≤20%

protect
Open circuit protection
Open circuit voltage < 58vdc

Short circuit protection
Burping mode, which can be automatically restored after the abnormal condition is removed


environment
working temperature
-30～+50℃

Working humidity
20-90% RH (no condensation)

Storage temperature / humidity
-40 ℃ - 80 ℃ (class I environment for 6 months); 10-90% RH (no condensation)

Atmospheric pressure
86-106KPa
Safety regulation and electromagnetic compatibility
Safety specification
EN61347-2-13:2006 /EN61347-1:2008

Withstand voltage
I/P-O/P:3.75KVac,<5mA,60S；

Insulation impedance
I/P-O/P:500Vac,>100M?0?9

electromagnetic interference
According to en55015 and en61000-3-2.

Surge level
Comply with iec61000-4-5 (L-N: 1KV)

Electromagnetic immunity
According to en61000-4-2,3,4,5,6,8,11; EN61547
other
size
(L*W*H) =155mm *53mm *30mm

IP level
IP20

weight
183g

packing
carton

Warranty Statement
3 years (TC & le; 75 ℃)
Test instructions
1. Unless otherwise specified, the above power factor, harmonic and efficiency parameters are measured under the conditions of ambient temperature 25 ℃, humidity 50%, input voltage 230VAC and 90% load.
Supplementary notes
1. Customers are advised to install overvoltage and undervoltage protection and surge protection devices in the lamp power supply circuit to ensure power safety
2. PC cover, shell, plug and other accessories for power supply in Luminaire must meet ul94-v0 and above fire rating
3. As a part of the whole lamp, the power supply is used in combination with the terminal equipment. Because the EMC performance is affected by the LED lamp and wiring, the terminal equipment manufacturer needs to re confirm the EMC of the whole device.

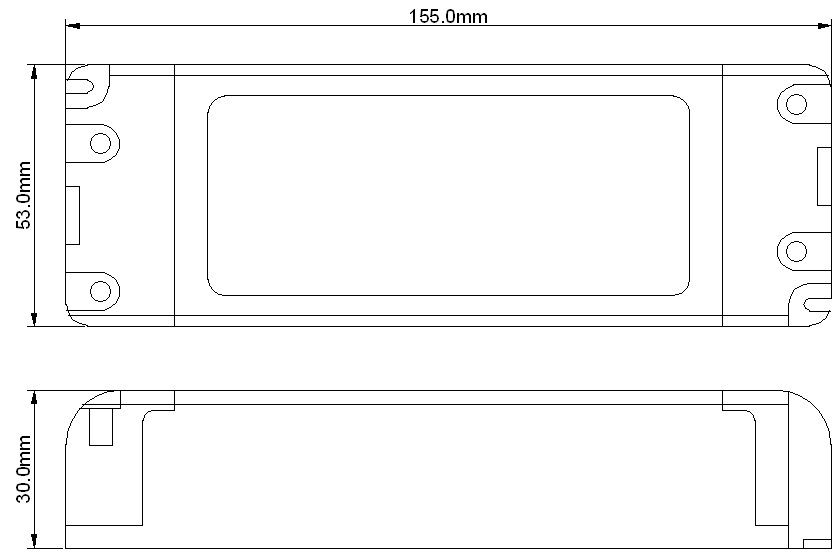

2、 Product size < br / >

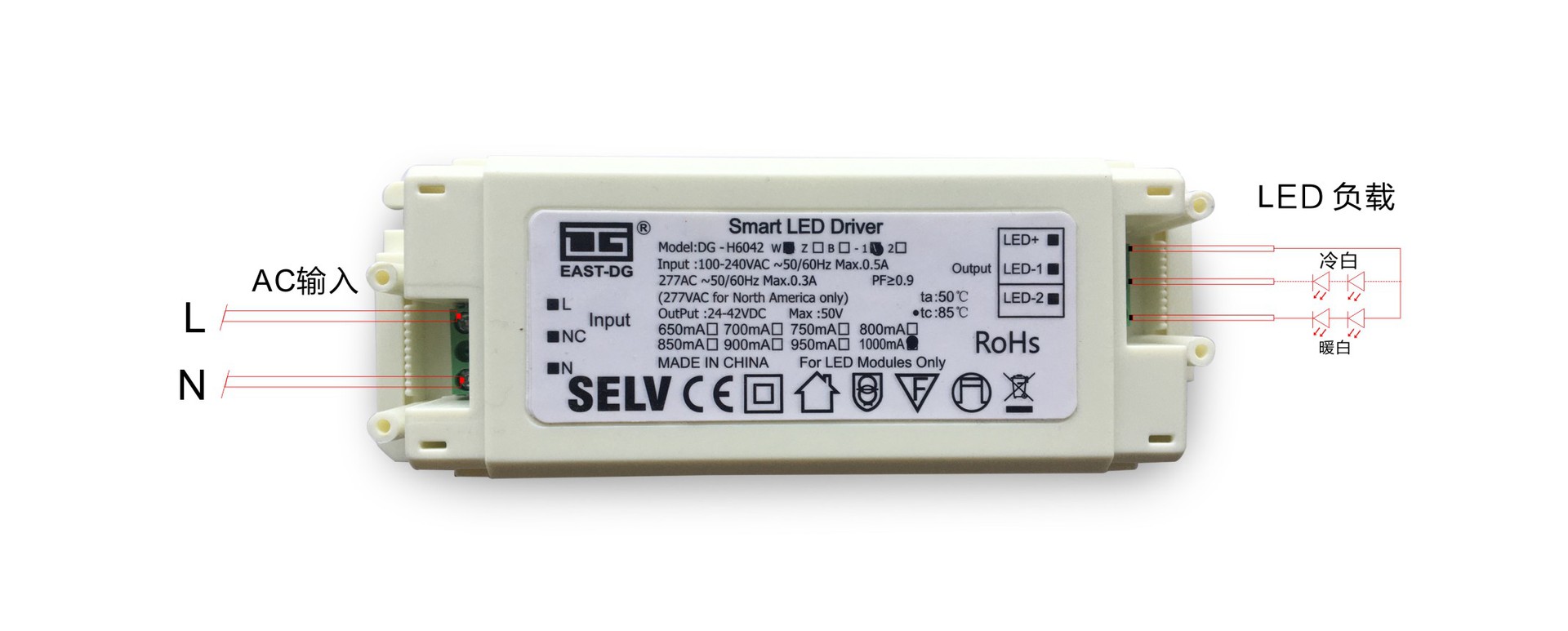

3、 Wiring diagram < br / >
